Page 27 - ATEN Product Series Guide - Modular Matrix Solution Series

Solutions for
Long Distance
Extension

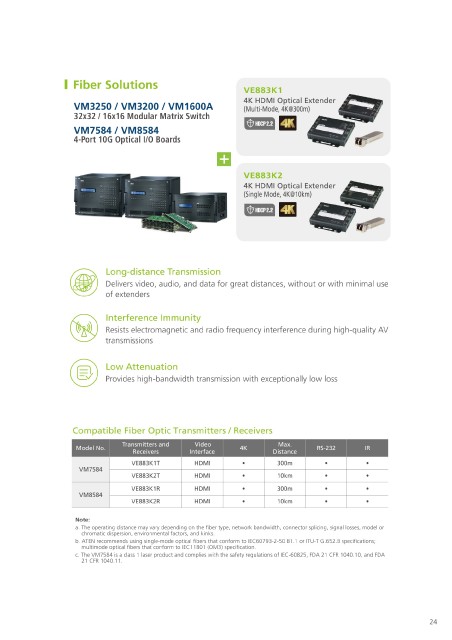

Fiber Solutions
VE805R VE883K1
HDMI HDBase-T-Lite Receiver with Scaler 4K HDMI Optical Extender

VM3250 / VM3200 / VM1600A (Multi-Mode, 4K@300m)
32x32 / 16x16 Modular Matrix Switch
HDBaseT™ Solutions HDCP 1.4 VM7584 / VM8584 HDCP 2.2
Seamless
VM3250 / VM3200 / VM1600A Switch 4-Port 10G Optical I/O Boards
32x32 / 16x16 Modular Matrix Switch
VM7514 / VM8514
4-Port HDBaseT I/O Boards VE816R VE883K2
4K HDMI HDBaseT Receiver with Scaler 4K HDMI Optical Extender
(Single Mode, 4K@10km)
HDCP 2.2
HDCP 2.2
Seamless
Switch

Compatible HDBaseT™ Transmitters
Max. Long-distance Transmission
Input Board Transmitters Video Interface 4K RS-232 IR
Distance Delivers video, audio, and data for great distances, without or with minimal use
VE2812AT HDMI & VGA • 100m • • of extenders

VE1812T HDMI • 100m • •
VE901T DisplayPort • 70m N/A N/A Interference Immunity
VE814AT HDMI x 2 • 100m • • Resists electromagnetic and radio frequency interference during high-quality AV
VM7514 VE812T HDMI • 100m N/A N/A transmissions
VE811T HDMI • 100m N/A N/A
VE802T HDMI • 70m • • Low Attenuation
VE801T HDMI • 70m N/A N/A Provides high-bandwidth transmission with exceptionally low loss
VE601T DVI N/A 70m N/A N/A

Compatible HDBaseT™ Receivers
Video Max. Seamless Video
Input Board Transmitters 4K RS-232 IR FrameSync
Interface Distance Switch™ Wall Compatible Fiber Optic Transmitters / Receivers
HDMI &
VE2812R • 100m • • N/A N/A N/A Transmitters and Video Max.
VGA Model No. Receivers Interface 4K Distance RS-232 IR
VE901R DisplayPort • 70m N/A N/A N/A N/A N/A VE883K1T HDMI • 300m • •
VM7584
VE816R HDMI • 100m • • • • • VE883K2T HDMI • 10km • •
VE814AR HDMI x 2 • 100m • • N/A N/A N/A VE883K1R HDMI • 300m • •
VM8584
VE812R HDMI • 100m N/A N/A N/A N/A N/A
VM8514 VE883K2R HDMI • 10km • •
VE811R HDMI • 100m N/A N/A N/A N/A N/A
Note:
VE805R HDMI N/A 70m • • • • N/A
a. The operating distance may vary depending on the fiber type, network bandwidth, connector splicing, signal losses, model or
VE802R HDMI • 70m • • N/A N/A N/A chromatic dispersion, environmental factors, and kinks.
b. ATEN recommends using single-mode optical fibers that conform to IEC60793-2-50 B1.1 or ITU-T G.652.B specifications;
VE801R HDMI • 70m N/A N/A N/A N/A N/A multimode optical fibers that conform to IEC11801 (OM3) specification.
c. The VM7584 is a class 1 laser product and complies with the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA
VE601R DVI N/A 70m N/A N/A N/A N/A N/A 21 CFR 1040.11.
Note:
a. Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
b. Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
c. Up to 1920x1200@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN
2L-2910 Cat6)
d. Up to 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
23 24
