Page 17 - ATEN Product Series Guide - Modular Matrix Solution Series

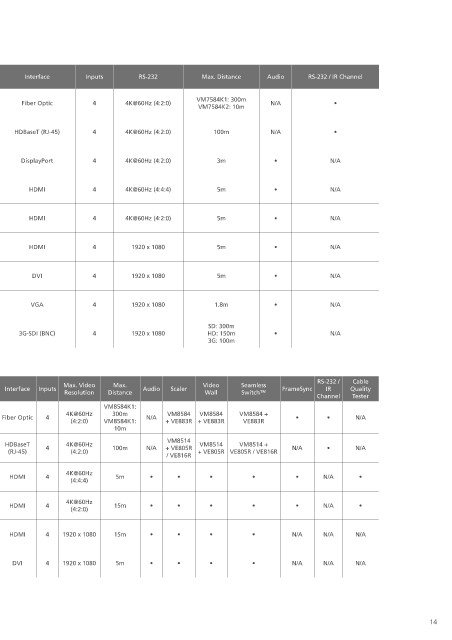

Compatible Input Boards

Model Interface Inputs RS-232 Max. Distance Audio RS-232 / IR Channel

VM7584 VM7584K1: 300m
4-Port 10G Optical Input Fiber Optic 4 4K@60Hz (4:2:0) N/A •
Board VM7584K2: 10m
VM7514 HDBaseT (RJ-45) 4 4K@60Hz (4:2:0) 100m N/A •
4-Port HDBaseT Input Board

VM7904
4-Port 4K DisplayPort DisplayPort 4 4K@60Hz (4:2:0) 3m • N/A
Input Board
VM7824
4-Port True 4K HDMI HDMI 4 4K@60Hz (4:4:4) 5m • N/A
Input Board

VM7814 HDMI 4 4K@60Hz (4:2:0) 5m • N/A
4-Port 4K HDMI Input Board

VM7804 HDMI 4 1920 x 1080 5m • N/A
4-Port HDMI Input Board

VM7604 DVI 4 1920 x 1080 5m • N/A
4-Port DVI Input Board

VM7104 VGA 4 1920 x 1080 1.8m • N/A
4-Port VGA Input Board

SD: 300m
VM7404
4-Port 3G-SDI Input Board 3G-SDI (BNC) 4 1920 x 1080 HD: 150m • N/A
3G: 100m

Compatible Output Boards

RS-232 / Cable
Max. Video Max. Video Seamless
Model Interface Inputs Audio Scaler FrameSync IR Quality
Resolution Distance Wall Switch™
Channel Tester
VM8584K1:
VM8584 4K@60Hz 300m VM8584 VM8584 VM8584 +
4-Port 10G Optical Fiber Optic 4 (4:2:0) VM8584K1: N/A + VE883R + VE883R VE883R • • N/A
Output Board
10m
VM8514 VM8514
VM8514
VM8514 +
4-Port HDBaseT HDBaseT 4 4K@60Hz 100m N/A + VE805R + VE805R VE805R / VE816R N/A • N/A
(RJ-45)
(4:2:0)
Output Board / VE816R
VM8824 4K@60Hz
4-Port True 4K HDMI HDMI 4 (4:4:4) 5m • • • • • N/A •
Output Board
VM8814 4K@60Hz
4-Port 4K HDMI HDMI 4 (4:2:0) 15m • • • • • N/A •
Output Board

VM8804 HDMI 4 1920 x 1080 15m • • • • N/A N/A N/A
4-Port HDMI Output Board

VM8604 DVI 4 1920 x 1080 5m • • • • N/A N/A N/A
4-Port DVI Output Board

Note:
a. True 4K resolutions are only supported when the VM7824 and VM8824 are used with VM3250.
b. 4K resolutions are only available when the Scaler is disabled. When the Scaler function is implemented, the highest resolution available is 1080p.
The scaler function is enabled by default.
c. HDMI audio signal can be extracted to stereo audio output; stereo audio can be embedded into the HDMI audio output.
13 d. Certain functions depend on video extender model used. 14
