ATEN Video Matrix Product

Control App Specifications

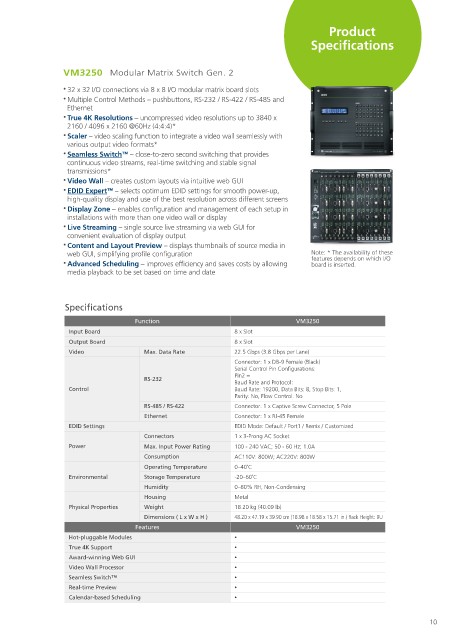

VM3250 Modular Matrix Switch Gen. 2

The ATEN Video Matrix Control App turns your mobile device • 32 x 32 I/O connections via 8 x 8 I/O modular matrix board slots
into a remote control for ATEN Video Matrix Switches. • Multiple Control Methods – pushbuttons, RS-232 / RS-422 / RS-485 and
Featuring an easy-to-use, intuitive interface, this control app Ethernet
provides direct access to manage ATEN Video Matrix • True 4K Resolutions – uncompressed video resolutions up to 3840 x
Switches anytime, anywhere to make AV matrix control even 2160 / 4096 x 2160 @60Hz (4:4:4)*
easier than before. • Scaler – video scaling function to integrate a video wall seamlessly with
various output video formats*
• Seamless Switch™ – close-to-zero second switching that provides
continuous video streams, real-time switching and stable signal
transmissions*
• Video Wall – creates custom layouts via intuitive web GUI
• EDID Expert™ – selects optimum EDID settings for smooth power-up,
high-quality display and use of the best resolution across different screens
• Display Zone – enables configuration and management of each setup in
installations with more than one video wall or display
• Live Streaming – single source live streaming via web GUI for
convenient evaluation of display output
iOS 12.0 or later Android 8.0 or later
• Content and Layout Preview – displays thumbnails of source media in
web GUI, simplifying profile configuration Note: * The availability of these
• Advanced Scheduling – improves efficiency and saves costs by allowing features depends on which I/O
board is inserted.
media playback to be set based on time and date
Simple Setup and Login Easy Profile Management
Auto scan the network for ATEN Video Scroll among Profiles and apply for current
Matrix devices and connect by entering application needs. Edit a Profile’s Layout
the corresponding IP Address, User Name, contents as well by changing the input Specifications
and Password. sources via the interface. Function VM3250
Input Board 8 x Slot
Output Board 8 x Slot
Video Max. Data Rate 22.5 Gbps (3.8 Gbps per Lane)
Connector: 1 x DB-9 Female (Black)
Pin2 =
RS-232
Baud Rate and Protocol:
Control Baud Rate: 19200, Data Bits: 8, Stop Bits: 1,
Parity: No, Flow Control: No
RS-485 / RS-422 Connector: 1 x Captive Screw Connector, 5 Pole
Ethernet Connector: 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port1 / Remix / Customized
Connectors 1 x 3-Prong AC Socket
Power Max. Input Power Rating 100 - 240 VAC; 50 - 60 Hz; 1.0A
Instant Video Switching Flexible Audio Control Consumption AC110V: 800W; AC220V: 800W
Switch video sources instantly via your Route, embed / de-embed, or turn on / off Operating Temperature 0–40˚C
mobile device by simply selecting the input audio any audio input with ease. Environmental Storage Temperature -20–60˚C
port and output port. Humidity 0–80% RH, Non-Condensing
Housing Metal
Physical Properties Weight 18.20 kg (40.09 lb)
Dimensions ( L x W x H ) 48.20 x 47.19 x 39.90 cm (18.98 x 18.58 x 15.71 in.) Rack Height: 9U
Features VM3250
Hot-pluggable Modules •
True 4K Support •
Award-winning Web GUI •
Video Wall Processor •
Seamless Switch™ •
Real-time Preview •
Calendar-based Scheduling •

9 10
