Page 8 - ATEN Product Series Guide - Modular Matrix Solution Series

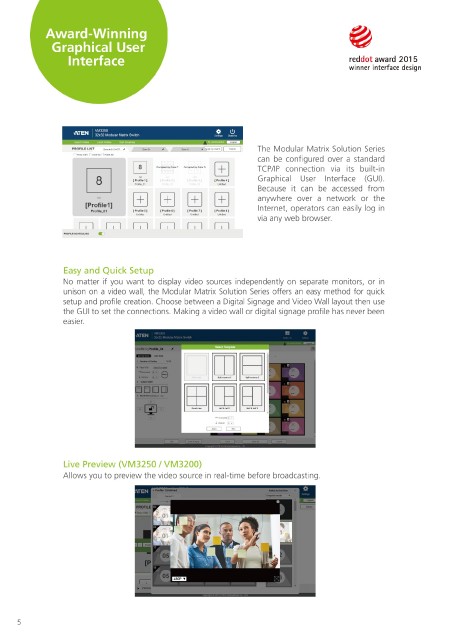

Award-Winning
Graphical User

Interface

Manage Video Outputs by Display Zones
You might have more than one video wall or display set up which are managed by one
modular matrix in your application. In this case, you can use Display Zones to separate each
setup in order to switch and manage profiles independently in each display zone, which
ensures streamlined operations as well as zero interference between each setup.

The Modular Matrix Solution Series
can be configured over a standard
TCP/IP connection via its built-in
Graphical User Interface (GUI).
Because it can be accessed from
anywhere over a network or the
Internet, operators can easily log in
via any web browser.

Digital Signage Video Wall Displays
in Location A in Location B in Location C
Easy and Quick Setup
No matter if you want to display video sources independently on separate monitors, or in
unison on a video wall, the Modular Matrix Solution Series offers an easy method for quick
setup and profile creation. Choose between a Digital Signage and Video Wall layout then use
the GUI to set the connections. Making a video wall or digital signage profile has never been
easier.

Zone Tabs

Profile List

Live Preview (VM3250 / VM3200)
Allows you to preview the video source in real-time before broadcasting.

5 6
