Introduction

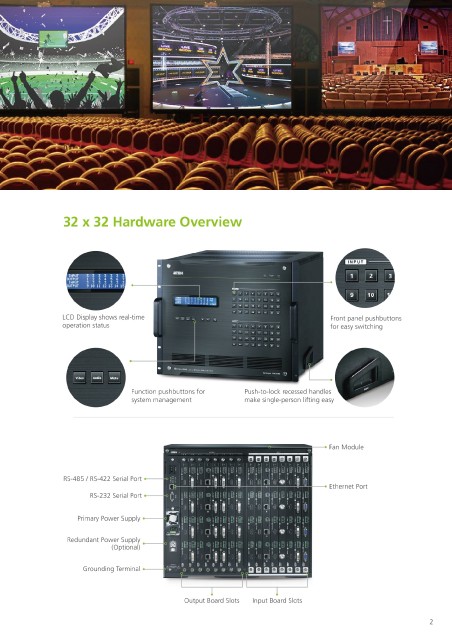

32 x 32 Hardware Overview

ATEN Modular Matrix Solutions are powerful matrix switches that provide various video
interfaces and transmission options – including digital and analog video formats such as
Fiber Optic, HDBaseT™, HDMI, SDI, DVI, and VGA – and offer real-time control and
advanced access to manage 16/32 video sources and 16/32 displays simultaneously.

LCD Display shows real-time Front panel pushbuttons
operation status for easy switching
In addition to their modular flexibility, models feature an all-in-one control mechanism that
integrates video wall processing and matrix switching. Empowered by ATEN Seamless
Switch™ technology, models incorporate a speed-progressive video switching function and
a unique scaler that integrates seamlessly with video wall systems, and enables the
distribution of video with perfect timing in any dimension.
Function pushbuttons for Push-to-lock recessed handles
system management make single-person lifting easy

Fan Module

RS-485 / RS-422 Serial Port
Ethernet Port
RS-232 Serial Port

Primary Power Supply

Redundant Power Supply
(Optional)

VM1600A VM3200 VM3250 Grounding Terminal
16x16 Modular Matrix Switch 32x32 Modular Matrix Switch 32x32 Modular Matrix Switch Gen. 2

Output Board Slots Input Board Slots

1 2
