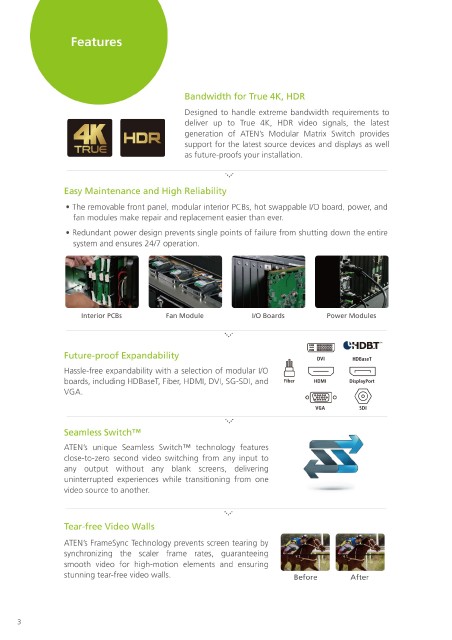

Features Features

Scaling for Optimized Output

A unique scaler utilizes ATEN FPGA technology to unify
Bandwidth for True 4K, HDR
various video input signals and render optimized output
Designed to handle extreme bandwidth requirements to resolutions on displays with uncompromised precision.
deliver up to True 4K, HDR video signals, the latest
generation of ATEN’s Modular Matrix Switch provides
support for the latest source devices and displays as well Calendar-based Scheduling
as future-proofs your installation.
A built-in calendar-based scheduling function allows you
to queue and play profiles via a calendar view for a
specific amount of time. This easy-to-use scheduling tool
Easy Maintenance and High Reliability is exactly what you need to set auto play by month, week,

• The removable front panel, modular interior PCBs, hot swappable I/O board, power, and hour or minute, reducing human operation costs and
fan modules make repair and replacement easier than ever. saving time.

• Redundant power design prevents single points of failure from shutting down the entire
system and ensures 24/7 operation. Cable Quality Testing

Allows the examination of connected cable signal quality to eliminate the need for
extensive checking processes and facilitate troubleshooting.

• Bulk cable testing: Allows the • Long distance cable testing: Check
simultaneous testing up to 32 the cable quality over long distances,
Interior PCBs Fan Module I/O Boards Power Modules cable connections with VM7814 up to 100 meters away, with VM8514
and VM8814 and VE816R

Input
VM7814
Receiver
Future-proof Expandability DVI HDBaseT VE816R
Hassle-free expandability with a selection of modular I/O
boards, including HDBaseT, Fiber, HDMI, DVI, SG-SDI, and Fiber HDMI DisplayPort
VGA.

VGA SDI
Output Output
VM8814 x32 VM8514
Seamless Switch™ HDMI Cable up to 100m

ATEN’s unique Seamless Switch™ technology features
close-to-zero second video switching from any input to Up to 32 connection can be checked at once Check 4K HDBaseT signal extending up to 100m away
any output without any blank screens, delivering
uninterrupted experiences while transitioning from one Multiple Control Methods
video source to another.
• Built-in award-winning Web GUI
• RS-232, RS-485, RS-422, Ethernet
• Front-panel pushbuttons
Tear-free Video Walls
• ATEN Video Matrix Control App
ATEN’s FrameSync Technology prevents screen tearing by • Integrated control via ATEN Control System
synchronizing the scaler frame rates, guaranteeing
smooth video for high-motion elements and ensuring
stunning tear-free video walls. Before After Bi-directional IR & RS-232 Channel
Transmits full range IR and RS-232 signals to control displays or other devices.
