Page 10 - ATEN Product Series Guide - Modular Matrix Solution Series

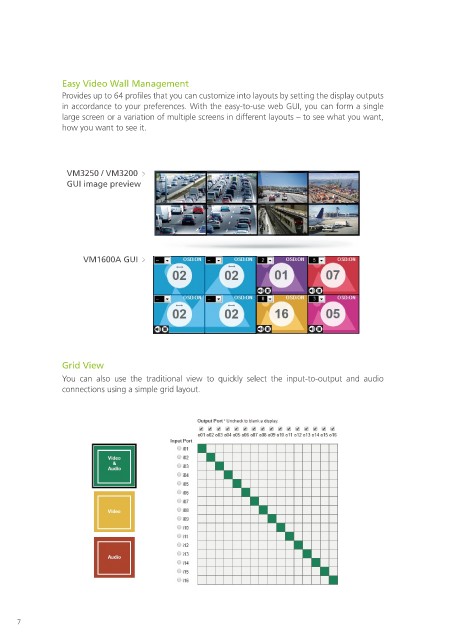

Easy Video Wall Management Customizable Resolutions
Provides up to 64 profiles that you can customize into layouts by setting the display outputs To fulfill diverse applications in the market,
in accordance to your preferences. With the easy-to-use web GUI, you can form a single including those less common resolutions produced
large screen or a variation of multiple screens in different layouts – to see what you want, from LED tiles, the Modular Matrix Solution Series
how you want to see it. also offers customizable resolution settings for
greater flexibility and enhanced compatibility.

VM3250 / VM3200 Note: VM8814 / VM8824 / VM8514+VE816R models support customizable Application: LED Video Walls
resolution on scaler outputs.
GUI image preview Feature Available Date: May, 2021.

VM1600A GUI

Grid View

You can also use the traditional view to quickly select the input-to-output and audio
connections using a simple grid layout.

7 8
